MyBatis



1. MyBatis 개요



1)자바 오브젝트와 SQL문 사이의 자동 Mapping 기능을 지원하는 ORM 프레임워크



2)SQL을 별도 파일로 분리해서 관리

--> SQL문과 자바 코드의 분리



3)SQL문을 그대로 이용하면서 도메인 객체나 VO 객체 중심으로 개발 가능



4)퍼시턴트 프레임워크



5)XML형태로 서술된 JDBC 코드라고 할 수 있을 정도로 JDBC 모든 기능을 제공함



2. MyBatis 주요 컴포넌트



1)MyBatis 설정 파일(SqlMapConfig.xml)

-DB 접속 주소 정보, Mapping 파일 경로 등 고정된 환경 정보 설정



2)Mapping 파일



3)SqlSessionFactoryBuilder



4)SqlSessionFactory



5)SqlSession
-핵심적인 역할하는 클래스
-SQL 실행이나 트랜잭션 관리를 실행함



3. SqlSession 클래스에서 제공하는 메서드들

1)List selectList(id)
-id에 대한 select문 실행한 후 여러 레코드를 List로 반환함


2)T selectOne(id)
-id에 대한 select문을 실행한 후 지정한 타입으로 한 개의 레코드를 반환함



3)int insert(id, Object obj)
-id에 대한 insert문을 실행하면서 obj 객체의 값을 테이블에 추가함



4)int update(id, Object obj)
-obj객체의 값을 조건문의 수정 값으로 사용해 id에 대한 update문을 실행함


5)int delete(id, Object obj)
-obj객체의 값을 조건문의 조건 값으로 사용해 id에 대한 delete문을 실행함



4. MyBatis 마이바티스 조건값 전달 방법



1)DAO에서 메서드 호출 시 전달된 조건값은 매개변수 이름으로 SQL문의 조건식에 전달



2)SQL문에서 조건문 사용 방법 : #{전달된 매개변수 이름}



마이바티스 사용하여 회원 목록 조회 예제

1.SqlMapConfig.xml 작성

<datasSource> 태그 이용해 DB 데이터 소스 설정
<mappers> 태그 이용해 SQL문이 있는 XML 파일 설정

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE configuration
  PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
  "http://mybatis.org/dtd/mybatis-3-config.dtd">

<configuration>
    <typeAliases>
        <typeAlias type="kr.co.ezenac.orm.MemberVO" alias="memberVO"/>
    </typeAliases>

    <environments default="development">
        <environment id="development">
            <transactionManager type="JDBC"/>
            <dataSource type="POOLED">
                <property name="driver" value="oracle.jdbc.driver.OracleDriver"/>
                <property name="url" value="jdbc:oracle:thin:@localhost:1521:XE"/>
                <property name="username" value="wdsql"/>
                <property name="password" value="0311"/>
            </dataSource>
        </environment>
    </environments>

    <mappers>
        <mapper resource="mybatis/mappers/member.xml"/>
    </mappers>
</configuration>
cs

2.member.xml 작성

<mapper namespace=""> : member.xml의 네임스페이스 지정
<result property="" column=""> : 레코드 컬럼 이름에 대해 memberVO와 같은 속성값을 지정

<select id="" resultMap=""> : DAO에서 id를 이용해 해당 SQL문을 호출하고 resultMap은 반환되는 레코드를 memResult에 저장할 것이다.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper
  PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
  "http://mybatis.org/dtd/mybatis-3-mapper.dtd">

<mapper namespace="mapper.member">                    <!-- member.xml의 네임스페이스 지정 -->

    <resultMap type="memberVO" id="memResult">        <!-- SQL문 실행한 후 반환되는 레코드들을 typeAlias 태그에서 지정한 memberVO 빈에 저장함 -->
        <result property="id" column="id" />
        <result property="pwd" column="pwd"/>
        <result property="name" column="name"/>
        <result property="email" column="email"/>
        <result property="joinDate" column="joinDate"/>
    </resultMap>


<!--     <resultMap type="java.util.HashMap" id="memResult">    조회한 레코드를 지정한 컬럼이름을 key, 값을 value로 지정
        <result property="id" column="id" />
        <result property="pwd" column="pwd"/>
        <result property="name" column="name"/>
        <result property="email" column="email"/>
        <result property="joinDate" column="joinDate"/>
    </resultMap> -->

    <!-- id : DAO에서 id를 이용해 해당 SQL문을 호출함 -->
    <!-- resultMap : 반환되는 레코드를 memResult에 저장함 -->
    <select id="selectAllMemberList" resultMap="memResult">
        <![CDATA[
            select * from t_member order by joinDate desc
        ]]>
    </select>
cs

3.MemberServlet.java 작성

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
import java.io.IOException;
import java.util.List;

import javax.servlet.RequestDispatcher;
import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

/**
 * Servlet implementation class MemberServlet
 */
@WebServlet("/mem.do")
public class MemberServlet extends HttpServlet {
    private static final long serialVersionUID = 1L;

    /**
     * @see HttpServlet#doGet(HttpServletRequest request, HttpServletResponse response)
     */
    protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {

        doHandle(request, response);
    }

    /**
     * @see HttpServlet#doPost(HttpServletRequest request, HttpServletResponse response)
     */
    protected void doPost(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {

        doHandle(request, response);
    }

    private void doHandle(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
        request.setCharacterEncoding("utf-8");
        response.setContentType("text/html;charset=utf-8");

        MemberDAO dao = new MemberDAO();
        List<MemberVO> membersList = dao.selectAllMemberList();
        request.setAttribute("membersList", membersList);

        RequestDispatcher dispatcher = request.getRequestDispatcher("orm01/listMembers.jsp");
        dispatcher.forward(request, response);

    }

}
cs

4.MemberVO.java 작성

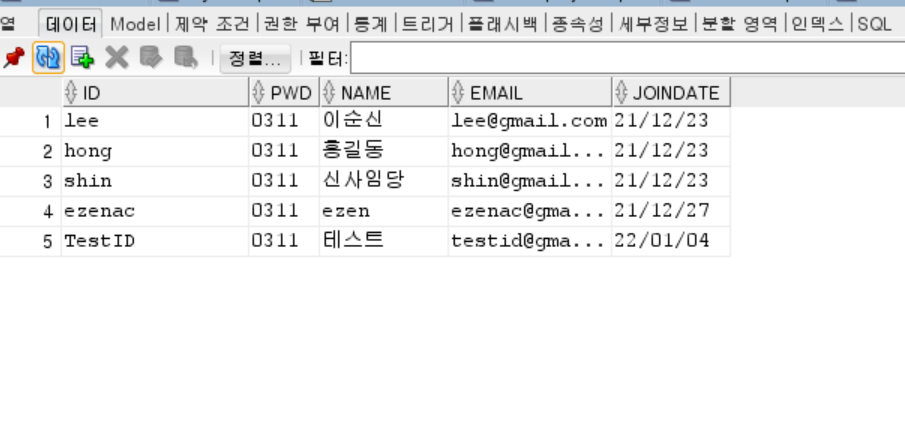

--이전 수업시간에 만들었던 t_member 테이블을 활용했다.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
import java.sql.Date;

public class MemberVO {

    private String id;
    private String pwd;
    private String name;
    private String email;
    private Date joinDate;

    public MemberVO() {
        // TODO Auto-generated constructor stub
    }

    public MemberVO(String id, String pwd, String name, String email) {
        super();
        this.id = id;
        this.pwd = pwd;
        this.name = name;
        this.email = email;
    }

    public String getId() {
        return id;
    }

    public void setId(String id) {
        this.id = id;
    }

    public String getPwd() {
        return pwd;
    }

    public void setPwd(String pwd) {
        this.pwd = pwd;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public String getEmail() {
        return email;
    }

    public void setEmail(String email) {
        this.email = email;
    }

    public Date getJoinDate() {
        return joinDate;
    }

    public void setJoinDate(Date joinDate) {
        this.joinDate = joinDate;
    }


}
cs

5.MemberDAO.java 작성

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
import java.io.IOException;
import java.io.Reader;
import java.util.List;

import org.apache.ibatis.io.Resources;
import org.apache.ibatis.session.SqlSession;
import org.apache.ibatis.session.SqlSessionFactory;
import org.apache.ibatis.session.SqlSessionFactoryBuilder;

public class MemberDAO {

    public static SqlSessionFactory sqlMapper = null;

    public static SqlSessionFactory getInstance() {
        if(sqlMapper == null) {
            String resource = "mybatis/SqlMapConfig.xml";
            try {
                Reader reader = Resources.getResourceAsReader(resource);
                sqlMapper = new SqlSessionFactoryBuilder().build(reader);
                reader.close();

            } catch (IOException e) {
                // TODO Auto-generated catch block
                e.printStackTrace();
            }
        }

        return sqlMapper;
    }

    public List<MemberVO> selectAllMemberList(){
        sqlMapper = getInstance();
        //실제 member.xml의 SQL문을 호출하는데 사용되는 SqlSession 객체를 가져옴
        SqlSession session = sqlMapper.openSession();
        //여러 개의 레코드를 조회하므로 selectList() 메서드에 실행하고자하는 SQL문의 id를 인자로 전달함
        List<MemberVO> memlist = session.selectList("mapper.member.selectAllMemberList");
        return memlist;
    }

}
cs

6.listMembers.jsp 작성

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<c:set var="contextPath" value="${pageContext.request.servletContext.contextPath }"/>
<%
    request.setCharacterEncoding("utf-8");
%>
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>회원 정보 출력</title>
</head>
<body>
    <table border="1" align="center" width="80%">
        <tr align="center" bgcolor="#98c8fa">
            <td width="%"><b>아이디</b></td>
            <td width="%"><b>비밀번호</b></td>
            <td width="%"><b>이름</b></td>
            <td width="%"><b>이메일</b></td>
            <td width="%"><b>가입일</b></td>
        </tr>
        <c:forEach var="mem" items="${membersList }">
        <tr align="center">
            <td>${mem.id }</td>
            <td>${mem.pwd }</td>
            <td>${mem.name }</td>
            <td>${mem.email }</td>
            <td>${mem.joinDate }</td>
        </tr>
        </c:forEach>
    </table>
</body>
</html>
cs

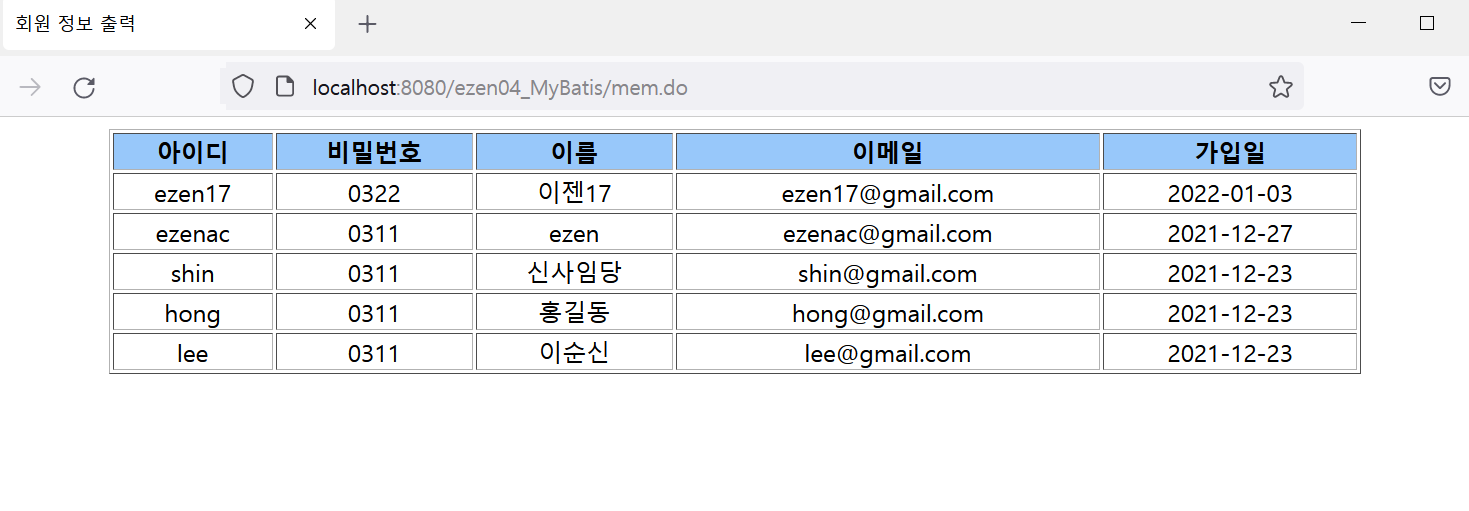

회원 목록 조회 결과 화면

회원 정보 조회 예제

1.member.xml 내용 추가

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper
  PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
  "http://mybatis.org/dtd/mybatis-3-mapper.dtd">

<mapper namespace="mapper.member">                    <!-- member.xml의 네임스페이스 지정 -->

    <resultMap type="memberVO" id="memResult">        <!-- SQL문 실행한 후 반환되는 레코드들을 typeAlias 태그에서 지정한 memberVO 빈에 저장함 -->
        <result property="id" column="id" />
        <result property="pwd" column="pwd"/>
        <result property="name" column="name"/>
        <result property="email" column="email"/>
        <result property="joinDate" column="joinDate"/>
    </resultMap>


<!--     <resultMap type="java.util.HashMap" id="memResult">    조회한 레코드를 지정한 컬럼이름을 key, 값을 value로 지정
        <result property="id" column="id" />
        <result property="pwd" column="pwd"/>
        <result property="name" column="name"/>
        <result property="email" column="email"/>
        <result property="joinDate" column="joinDate"/>
    </resultMap> -->

    <!-- id : DAO에서 id를 이용해 해당 SQL문을 호출함 -->
    <!-- resultMap : 반환되는 레코드를 memResult에 저장함 -->
    <select id="selectAllMemberList" resultMap="memResult">
        <![CDATA[
            select * from t_member order by joinDate desc
        ]]>
    </select>

    <!-- resultType : 문자열로 지정해 SQL문으로 조회한 이름(문자열)을 호출한 메서드로 반환함 -->
    <select id="selectName" resultType="String">
        <![CDATA[
            select name from t_member
            where id = 'ezenac'
        ]]>
    </select>

    <!-- resultType : 속성을 int로 지정해 SQL문으로 조회한 정수를 호출한 메서드로 반환함 -->
    <select id="selectPwd" resultType="int">
        <![CDATA[
            select pwd from t_member
            where id = 'ezenac'
        ]]>
    </select>
cs

2.MemberServlet.java 작성



매핑 /mem2.do로 변경

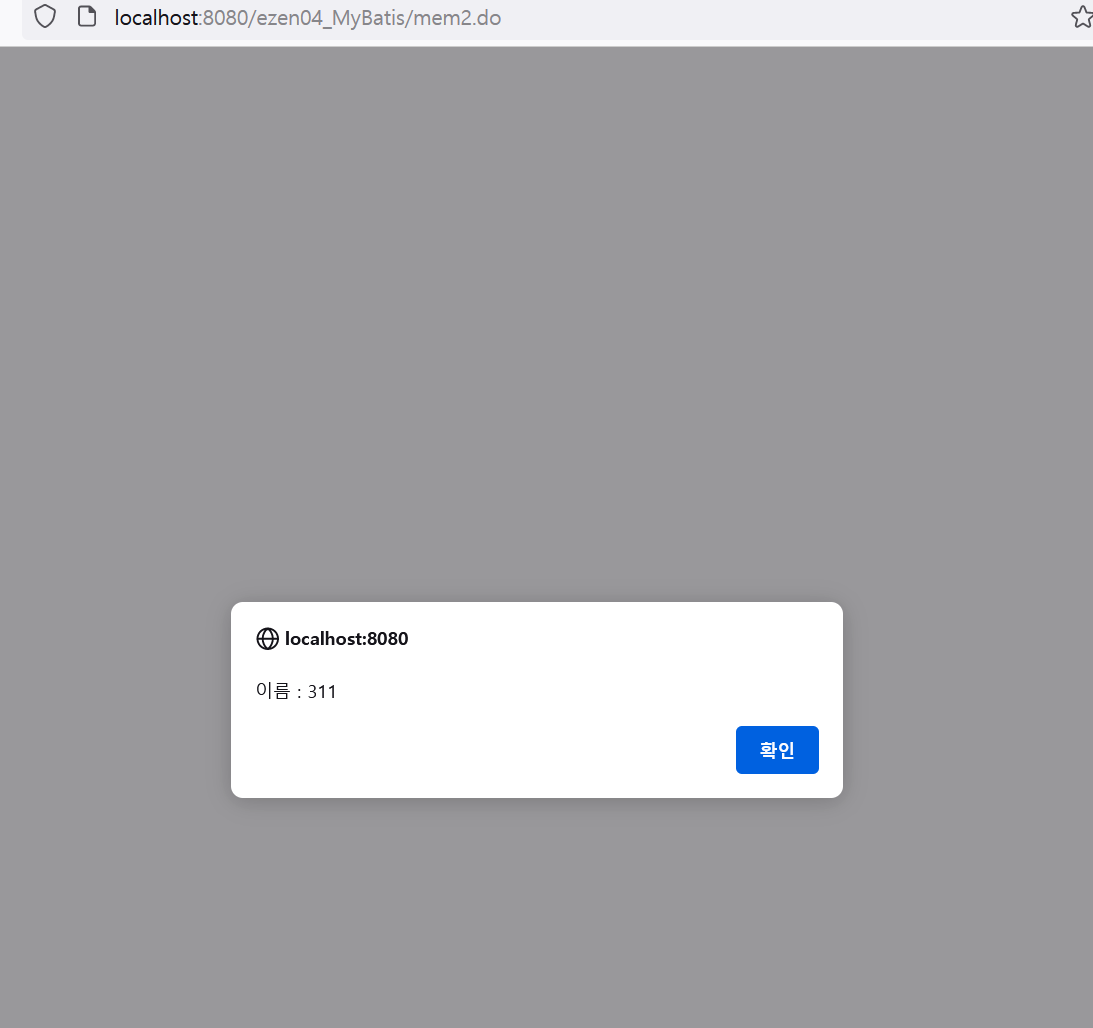

alert창으로 회원 정보 띄우기 구현

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
import java.io.IOException;
import java.io.PrintWriter;
import java.util.List;

import javax.servlet.RequestDispatcher;
import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

/**
 * Servlet implementation class MemberServlet
 */
@WebServlet("/mem2.do")
public class MemberServlet extends HttpServlet {
    private static final long serialVersionUID = 1L;

    /**
     * @see HttpServlet#doGet(HttpServletRequest request, HttpServletResponse response)
     */
    protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {

        doHandle(request, response);
    }

    /**
     * @see HttpServlet#doPost(HttpServletRequest request, HttpServletResponse response)
     */
    protected void doPost(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {

        doHandle(request, response);
    }

    private void doHandle(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
        request.setCharacterEncoding("utf-8");
        response.setContentType("text/html;charset=utf-8");
        PrintWriter out = response.getWriter();

        MemberDAO dao = new MemberDAO();
        String name = dao.selectName();
        int pwd = dao.selectPwd();

        out.write("<script>");
        //out.print("alert('이름 : "+name+" ')");
        out.write("alert('이름 : "+pwd+" ')");
        out.write("</script>");


    }

}
cs

3.MemberDAO.java 작성

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
import java.io.IOException;
import java.io.Reader;
import java.util.List;

import org.apache.ibatis.io.Resources;
import org.apache.ibatis.session.SqlSession;
import org.apache.ibatis.session.SqlSessionFactory;
import org.apache.ibatis.session.SqlSessionFactoryBuilder;

public class MemberDAO {

    public static SqlSessionFactory sqlMapper = null;

    public static SqlSessionFactory getInstance() {
        if(sqlMapper == null) {
            String resource = "mybatis/SqlMapConfig.xml";
            try {
                Reader reader = Resources.getResourceAsReader(resource);
                sqlMapper = new SqlSessionFactoryBuilder().build(reader);
                reader.close();

            } catch (IOException e) {
                // TODO Auto-generated catch block
                e.printStackTrace();
            }
        }

        return sqlMapper;
    }

    public String selectName() {
        sqlMapper = getInstance();
        SqlSession session = sqlMapper.openSession();
        //selectOne() 메서드를 인자로 지정한 SQL문을 실행한 후 한 개의 데이터(문자열)을 반환함.
        String name = session.selectOne("mapper.member.selectName");
        return name;
    }

    public int selectPwd() {
        sqlMapper = getInstance();
        SqlSession session = sqlMapper.openSession();
        //selectOne() 메서드를 인자로 지정한 SQL문을 실행한 후 한 개의 데이터(정수)을 반환함.
        int pwd = session.selectOne("mapper.member.selectPwd");
        return pwd;
    }


}
cs

결과 화면



검색 조건 설정하여 회원 조회

1.member.xml 에 내용 추가



MemberDAO에서 메서드 호출 시 전달된 조건값은 매개변수 이름으로 sql문의 조건식에 전달

SQL문에서 조건값 전달 방법 : #{전달될 매개변수 이름}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
<!-- 조회되는 한 개의 레코드를 memberVO에 저장함 -->
    <!-- String : MemberDAO에서 SQL문 호출 시 전달되는 매개변수의 데이터타입을 지정 -->
    <select id="selectMemberById" resultType="memberVO" parameterType="String">
        <![CDATA[
            select * from t_member
            where id = #{id}
        ]]>
    </select>

    <select id="selectMemberByPwd" resultMap="memResult" parameterType="int">
        <![CDATA[
            select * from t_member
            where pwd = #{pwd}
        ]]>
    </select>

    <!-- parameterType : dao에서 회원 정보를 memberVO의 속성에 저장해서 넘김 -->
    <!-- values <== memberVO의 속성 이름에 저장된 값을 value로 설정함 -->
    <select id="insertMember" parameterType="memberVO">
        <![CDATA[
            insert into t_member (id,pwd,name,email)
            values (#{id}, #{pwd}, #{name}, #{email})
        ]]>
    </select>
cs

2.MemberDAO.java 내용 추가

1
2
3
4
5
6
7
8
9
10
11
12
13
14
public MemberVO selectMemberById(String id) {
        sqlMapper = getInstance();
        SqlSession session = sqlMapper.openSession();
        MemberVO memberVO = session.selectOne("mapper.member.selectMemberById", id);
        return memberVO;
    }

    public List<MemberVO> selectMemberByPwd(int pwd) {
        sqlMapper = getInstance();
        SqlSession session = sqlMapper.openSession();

        List<MemberVO> membersList = session.selectList("mapper.member.selectMemberByPwd", pwd);
        return membersList;
    }
cs

3.MemberServlet.java 작성



매핑 /mem3.do 변경

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
import java.io.IOException;

import java.io.PrintWriter;
import java.util.List;

import javax.servlet.RequestDispatcher;
import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import kr.co.ezenac.orm.MemberVO;


/**
 * Servlet implementation class MemberServlet
 */
@WebServlet("/mem3.do")
public class MemberServlet extends HttpServlet {
    private static final long serialVersionUID = 1L;

    /**
     * @see HttpServlet#doGet(HttpServletRequest request, HttpServletResponse response)
     */
    protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {

        doHandle(request, response);
    }

    /**
     * @see HttpServlet#doPost(HttpServletRequest request, HttpServletResponse response)
     */
    protected void doPost(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {

        doHandle(request, response);
    }

    private void doHandle(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
        request.setCharacterEncoding("utf-8");
        response.setContentType("text/html;charset=utf-8");
        PrintWriter out = response.getWriter();

        MemberDAO dao = new MemberDAO();
        MemberVO memberVO = new MemberVO();

        String action = request.getParameter("action");
        String forwardPage = "";

        if(action == null || action.equals("listMembers")){
            List<MemberVO> membersList = dao.selectAllMemberList();
            request.setAttribute("membersList", membersList);
            forwardPage = "orm02/listMembers.jsp";
        }
        // 검색 조건이 selectMemberById이면 전송된 값을 getParameter()로 가저온 후
        // SQL문의 조건식에서 id의 조건 값으로 전달
        else if(action.equals("selectMemberById")) {
            String id = request.getParameter("value");
            memberVO = dao.selectMemberById(id);
            request.setAttribute("member", memberVO);
            forwardPage = "orm02/memberInfo.jsp";
        }
        // 검색 조건이 selectMemberByPwd이면 전송된 값을
        // getParmeter()로 가져온 후 sql문의 조건식 pwd의 조건값으로 전달
        else if(action.equals("selectMemberByPwd")) {
            int pwd = Integer.parseInt(request.getParameter("value"));
            List<MemberVO> membersList = dao.selectMemberByPwd(pwd);
            request.setAttribute("membersList", membersList);
            forwardPage = "orm02/listMembers.jsp";
        }

        RequestDispatcher dispatcher = request.getRequestDispatcher(forwardPage);
        dispatcher.forward(request, response);


    }

}
cs

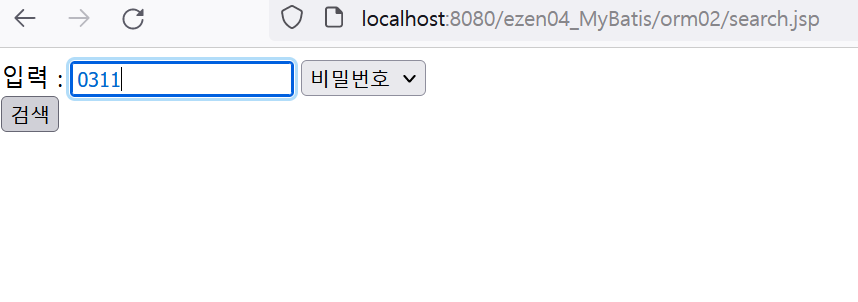

4.search.jsp 작성

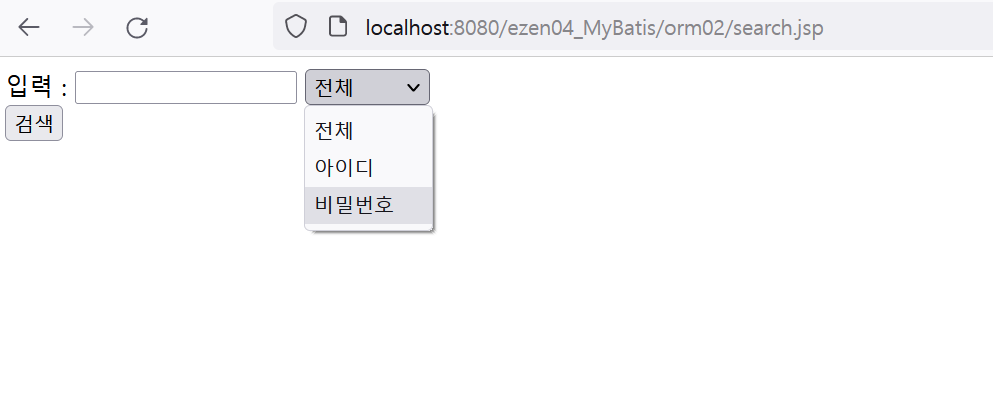

검색 조건을 전체, 아이디, 비밀번호 3가지로 주었다.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>회원 검색창</title>
</head>
<body>
    <form action="${pageContext.request.servletContext.contextPath }/mem3.do">
        입력 : <input type="text" name="value">            <!-- 검색할 값 입력 -->
        <select name="action">
            <option value="listMembers">전체</option>        <!-- 셀렉트 박스의 검색 조건 선택 -->
            <option value="selectMemberById">아이디</option>
            <option value="selectMemberByPwd">비밀번호</option>
        </select><br>
        <input type="submit" value="검색">
    </form>
</body>
</html>
cs

5.memberInfo.jsp 작성

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<%@ taglib prefix="fmt" uri="http://java.sun.com/jsp/jstl/fmt" %>
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>회원 정보 출력</title>
</head>
<body>
    <table border="1" align="center" width="100%">
        <tr align="center" bgcolor="#98c8fa">
            <td><b>아이디</b></td>
            <td><b>비밀번호</b></td>
            <td><b>이름</b></td>
            <td><b>이메일</b></td>
            <td><b>가입일</b></td>
        </tr>

        <tr align="center">
            <td>${member.id }</td>
            <td>${member.pwd }</td>
            <td>${member.name }</td>
            <td>${member.email }</td>
            <td>${member.joinDate }</td>
        </tr>
    </table>
</body>
</html>
cs

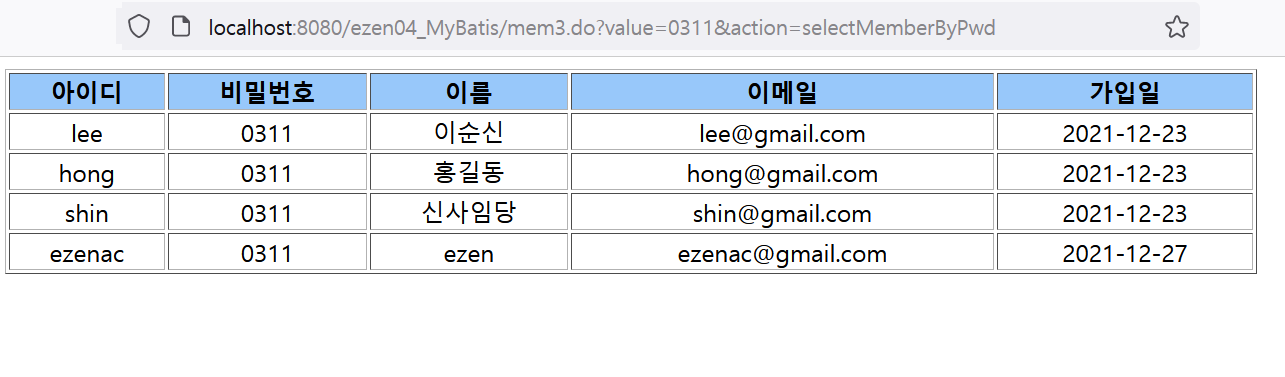

결과 화면

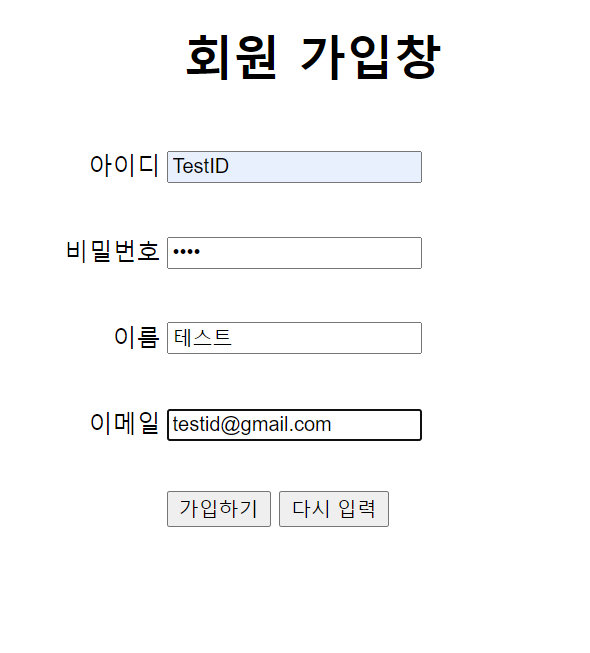

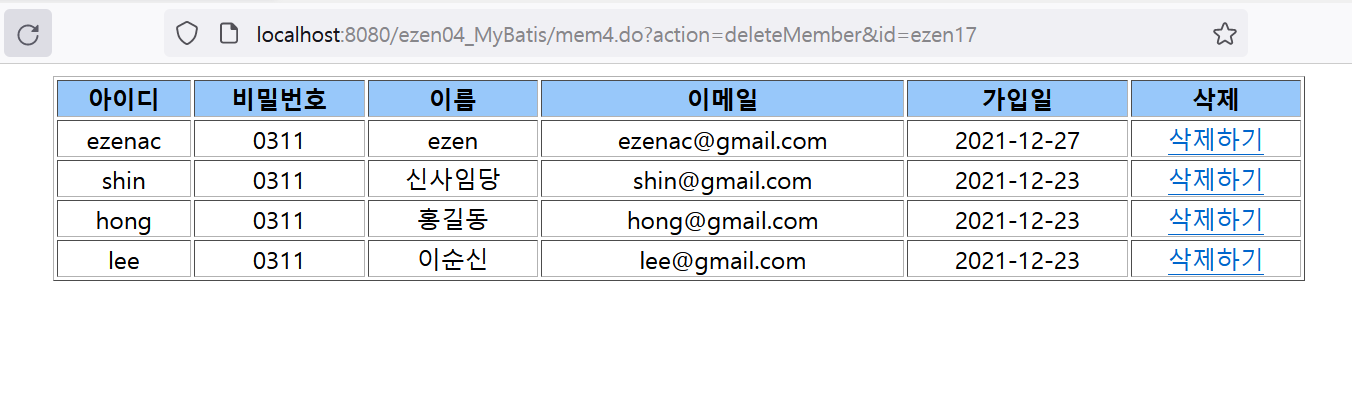

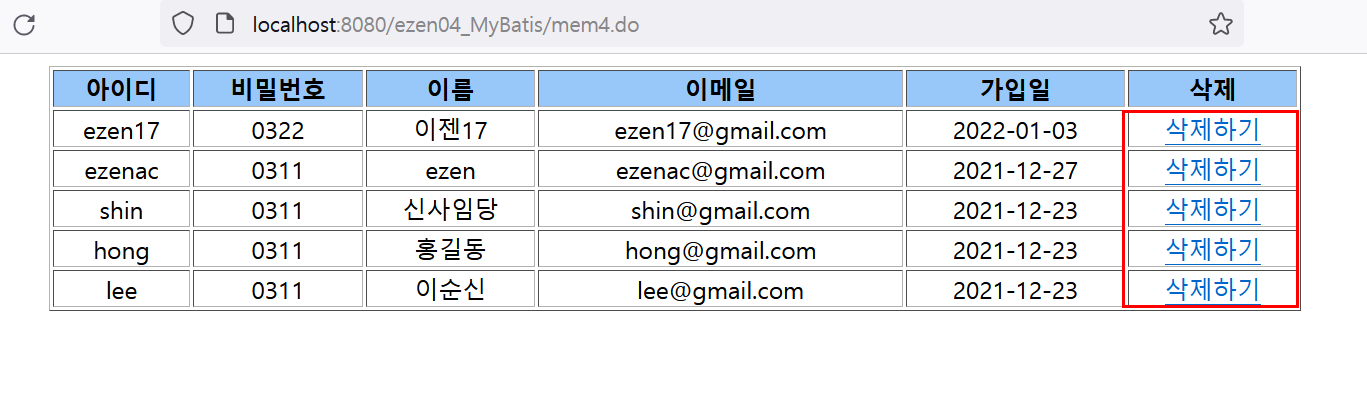

회원 추가, 회원 정보 수정, 회원 삭제

1.member.xml 내용 추가

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
<!-- parameterType : dao에서 회원 정보를 memberVO의 속성에 저장해서 넘김 -->
    <!-- values <== memberVO의 속성 이름에 저장된 값을 value로 설정함 -->
    <select id="insertMember" parameterType="memberVO">
        <![CDATA[
            insert into t_member (id,pwd,name,email)
            values (#{id}, #{pwd}, #{name}, #{email})
        ]]>
    </select>

    <!-- values <== HashMap에 각각의 key로 저장된 value를 가져와 테이블에 추가함 -->
    <insert id="insertMember2" parameterType="java.util.HashMap">
        <![CDATA[
            insert into t_member (id,pwd,name,email)
            values (#{id}, #{pwd}, #{name}, #{email})
        ]]>
    </insert>

    <!-- parameterType : SQL문에 사용될 데이터를 memberVO 빈에 설정해 전달함 -->
    <update id="updateMember" parameterType="memberVO">
        <![CDATA[
            update t_member
            set pwd = #{pwd}, name = #{name}, email = #{email}
            where
            id = #{id}
        ]]>
    </update>

    <!-- parameterType : 회원 ID는 문자열이므로 parameterType을 String으로 설정함 -->
    <!-- #{id} <== 전달된 ID를 조건값으로 해당 회원 정보를 삭제 -->
    <delete id="deleteMember" parameterType="String">
        <![CDATA[
            delete from t_member
            where
            id = #{id}
        ]]>
    </delete>

    <!-- 동적 SQL -->
    <!-- <select id="searchMember" parameterType="memberVO" resultMap="memResult">
        <![CDATA[
            select * from t_member
        ]]>
        <where>
            <if test=" name !='' and name != null">
                name = #{name}
            </if>
            <if test=" email !='' and email != null">
                and email = #{email}
            </if>
        </where>
        order by joinDate desc
    </select> -->

    <select id="searchMember" parameterType="memberVO" resultMap="memResult">
        <![CDATA[
            select * from t_member
        ]]>
        <where>
            <choose>
                <when test="name != '' and name != null and email != '' and email != null ">
                    name = #{name} and email = #{email}
                </when>
                <when test="name != '' and name != null">
                    name = #{name}
                </when>
                <when test="email != and email != null">
                    email = #{email}
                </when>
            </choose>
        </where>
        order by joinDate desc
    </select>

    <select id="foreachSelect" resultMap="memResult" parameterType="java.util.Map">
        <![CDATA[
            select * from t_member
        ]]>
        where name in
        <foreach collection="list" item="item" open="(" separator="," close=")">
            #{item}
        </foreach>
        order by joinDate desc
    </select>
cs

2.MemberDAO.java 내용 추가

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
public int insertMember(MemberVO memberVO) {
        sqlMapper = getInstance();
        SqlSession session = sqlMapper.openSession();
        int result = session.insert("mapper.member.insertMember", memberVO);
        session.commit();  //수동 커밋이므로 반드시 commit()메서드 호출하여 반영해야함
        return result;
    }

    public int insertMember2(Map<StringString> memberMap) {
        sqlMapper = getInstance();
        SqlSession session = sqlMapper.openSession();
        int result = session.insert("mapper.member.insertMember2", memberMap);    //메서드로 전달된 Ha
        session.commit();
        return result;

    }

    public int updateMember(MemberVO memberVO) {
        sqlMapper = getInstance();
        SqlSession session = sqlMapper.openSession();
        int result = session.update("mapper.member.updateMember", memberVO);
        session.commit();

        return result;
    }

    public int deleteMember(String id) {
        sqlMapper = getInstance();
        SqlSession session = sqlMapper.openSession();
        int result = session.delete("mapper.member.deleteMember", id);
        session.commit();
        return result;

    }

    public List<MemberVO> searchMember(MemberVO memberVO) {
        sqlMapper = getInstance();
        SqlSession session = sqlMapper.openSession();
        //회원 검색창에서 전달된 이름과 메일값을 memberVO에 설정하여 SQL문에 전달함
        List<MemberVO> list = session.selectList("mapper.member.searchMember", memberVO);
        return list;
    }

    public List<MemberVO> foreachSelect(List<String> nameList) {
        sqlMapper = getInstance();
        SqlSession session = sqlMapper.openSession();
        //검색 이름이 저장된 nameList을 SQL문으로 전달함
        List<MemberVO> list = session.selectList("mapper.member.foreachSelect", nameList);
        return list;
    }
cs

3.MemberServlet.java 내용 추가

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
private void doHandle(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
        request.setCharacterEncoding("utf-8");
        response.setContentType("text/html;charset=utf-8");
        PrintWriter out = response.getWriter();

        MemberDAO dao = new MemberDAO();
        MemberVO memberVO = new MemberVO();

        String action = request.getParameter("action");
        String forwardPage = "";

        if(action == null || action.equals("listMembers")){
            List<MemberVO> membersList = dao.selectAllMemberList();
            request.setAttribute("membersList", membersList);
            forwardPage = "orm03/listMembers.jsp";
        }
        // 검색 조건이 selectMemberById이면 전송된 값을 getParameter()로 가저온 후
        // SQL문의 조건식에서 id의 조건 값으로 전달
        else if(action.equals("selectMemberById")) {
            String id = request.getParameter("value");
            memberVO = dao.selectMemberById(id);
            request.setAttribute("member", memberVO);
            forwardPage = "orm02/memberInfo.jsp";
        }
        // 검색 조건이 selectMemberByPwd이면 전송된 값을
        // getParmeter()로 가져온 후 sql문의 조건식 pwd의 조건값으로 전달
        else if(action.equals("selectMemberByPwd")) {
            int pwd = Integer.parseInt(request.getParameter("value"));
            List<MemberVO> membersList = dao.selectMemberByPwd(pwd);
            request.setAttribute("membersList", membersList);
            forwardPage = "orm03/listMembers.jsp";
        }
        else if(action.equals("insertMember")) {
            String id = request.getParameter("id");
            String pwd = request.getParameter("pwd");
            String name = request.getParameter("name");
            String email = request.getParameter("email");
            memberVO.setId(id);
            memberVO.setPwd(pwd);
            memberVO.setName(name);
            memberVO.setEmail(email);
            dao.insertMember(memberVO);
            forwardPage = "/mem4.do?action=listMembers";
        }
        else if(action.equals("insertMember2")) {
            String id = request.getParameter("id");
            String pwd = request.getParameter("pwd");
            String name = request.getParameter("name");
            String email = request.getParameter("email");

            Map<StringString> memberMap = new HashMap<>();
            /* 회원 가입창에서 전송된 회원 정보를 HashMap에 key/value 형태로 저장한 후 insertMember2() 인자로 전달 */
            memberMap.put("id", id);
            memberMap.put("pwd", pwd);
            memberMap.put("name", name);
            memberMap.put("email", email);
            dao.insertMember2(memberMap);
            forwardPage = "mem4.do?action = listMembers";
        }
        else if(action.equals("updateMember")) {
            String id = request.getParameter("id");
            String pwd = request.getParameter("pwd");
            String name = request.getParameter("name");
            String email = request.getParameter("email");

            memberVO.setId(id);
            memberVO.setPwd(pwd);
            memberVO.setName(name);
            memberVO.setEmail(email);
            dao.updateMember(memberVO);
            forwardPage = "mem4.do?action=listMembers";
        }
        else if(action.equals("deleteMember")) {
            String id = request.getParameter("id");        //회원 ID를 가져옴
            dao.deleteMember(id);
            forwardPage = "/mem4.do?action=listMembers";
        }
        else if(action.equals("searchMember")) {
            String name = request.getParameter("name");        //검색창에 입력한 검색 조건을 가져옴
            String email = request.getParameter("email");
            memberVO.setName(name);
            memberVO.setEmail(email);
            List<MemberVO> membersList = dao.searchMember(memberVO);
            request.setAttribute("membersList", membersList);
            forwardPage = "orm03/listMembers.jsp";
        }
        else if(action.equals("foreachSelect")) {
            List<String> nameList = new ArrayList<>();
            nameList.add("이순신");
            nameList.add("신사임당");
            nameList.add("홍길동");
            List<MemberVO> membersList = dao.foreachSelect(nameList);
            request.setAttribute("membersList", membersList);
            forwardPage = "orm03/listMembers.jsp";
        }

        RequestDispatcher dispatcher = request.getRequestDispatcher(forwardPage);
        dispatcher.forward(request, response);


    }
cs

4.memberForm.jsp 작성



회원가입창

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<c:set var="contextPath" value="${pageContext.request.contextPath }"/>
<!DOCTYPE html>
<html>
<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>회원 가입창</title>
</head>
<body>
    <form action="${contextPath }/mem4.do?action=insertMember2" method="post">
        <h1 style="text-align: center;">회원 가입창</h1>
        <table align="center">
            <tr>
                <td width="200">
                    <p align="right">아이디</p>
                </td>
                <td width="400">
                    <input type="text" name="id">
                </td>
            </tr>
            <tr>
                <td width="200">
                    <p align="right">비밀번호</p>
                </td>
                <td width="400">
                    <input type="password" name="pwd">
                </td>
            </tr>
            <tr>
                <td width="200">
                    <p align="right">이름</p>
                </td>
                <td width="400">
                    <input type="text" name="name">
                </td>
            </tr>
            <tr>
                <td width="200">
                    <p align="right">이메일</p>
                </td>
                <td width="400">
                    <input type="text" name="email">
                </td>
            </tr>
            <tr>
                <td width="200">
                    <p align="right">&nbsp;</p>
                </td>
                <td width="400">
                    <input type="submit" value="가입하기">
                    <input type="reset" value="다시 입력">
                </td>

            </tr>
        </table>
    </form>
</body>
</html>
cs

5.modMember.jsp 작성



회원 정보 수정 화면

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<%@ taglib prefix="fmt" uri="http://java.sun.com/jsp/jstl/fmt" %>
<c:set var="contextPath" value="${pageContext.request.contextPath}" />
<%
    request.setCharacterEncoding("utf-8");
%>
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>회원 정보 수정</title>
</head>
<body>
    <h1> 회원 정보 수정 </h1>
    <form action="${contextPath}/mem4.do?action=updateMember" method="post">
        <h1 style="text-align: center;">회원 가입창</h1>
        <table align="center">
            <tr>
                <td width="200">
                    <p align="right">아이디</p>
                </td>
                <td width="400">
                    <input type="text" name="id" >
                </td>
            </tr>
            <tr>
                <td width="200">
                    <p align="right">비밀번호</p>
                </td>
                <td width="400">
                    <input type="password" name="pwd" >
                </td>
            </tr>
            <tr>
                <td width="200">
                    <p align="right">이름</p>
                </td>
                <td width="400">
                    <input type="text" name="name" >
                </td>
            </tr>
            <tr>
                <td width="200">
                    <p align="right">이메일</p>
                </td>
                <td width="400">
                    <input type="text" name="email">
                </td>
            </tr>
            <tr>
                <td width="200">
                    <p align="right">&nbsp;</p>
                </td>
                <td width="400">
                    <input type="submit" value="수정하기">
                    <input type="reset" value="다시입력">
                </td>
            </tr>
        </table>
    </form>
</body>
</html>
cs

6.searchMember.jsp 작성



foreach문 활용하여 회원 정보 검색하는 화면

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<c:set var="contextPath" value="${pageContext.request.servletContext.contextPath }"/>
<%
    request.setCharacterEncoding("utf-8");
%>
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>회원 검색창</title>
</head>
<body>
    <h1>회원 검색</h1>
    <form action="${contextPath }/mem4.do">
        <input type="hidden" name="action" value="searchMember">
        이름 : <input type="text" name="name"><br>
        이메일 : <input type="text" name="email"><br>
        <input type="submit" value="검색">
    </form>
</body>
</html>
cs

7.listMembers.jsp 작성



회원 정보 삭제 기능 추가

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<c:set var="contextPath" value="${pageContext.request.servletContext.contextPath }"/>
<%
    request.setCharacterEncoding("utf-8");
%>
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>회원 정보 출력</title>
</head>
<body>
    <table border="1" align="center" width="80%">
        <tr align="center" bgcolor="#98c8fa">
            <td width="%"><b>아이디</b></td>
            <td width="%"><b>비밀번호</b></td>
            <td width="%"><b>이름</b></td>
            <td width="%"><b>이메일</b></td>
            <td width="%"><b>가입일</b></td>
            <td><b>삭제</b></td>
        </tr>
        <c:forEach var="member" items="${membersList }">
        <tr align="center">
            <td>${member.id }</td>
            <td>${member.pwd }</td>
            <td>${member.name }</td>
            <td>${member.email }</td>
            <td>${member.joinDate }</td>
            <td><a href="${contextPath }/mem4.do?action=deleteMember&id=${member.id}">삭제하기</a></td>
        </tr>
        </c:forEach>
    </table>
</body>
</html>
cs

결과화면

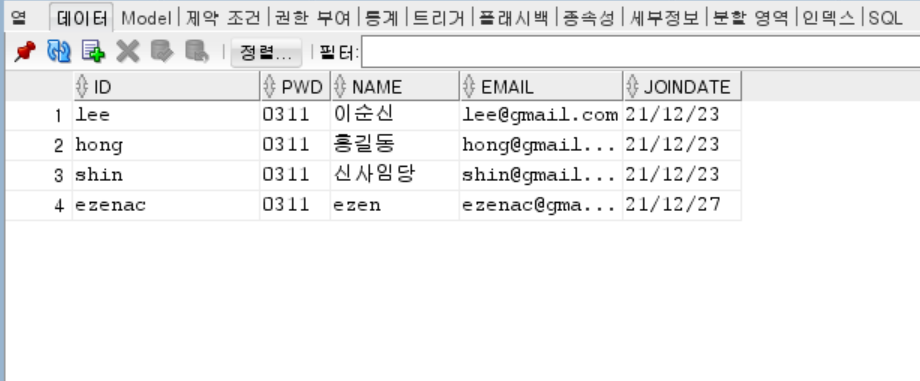

가입하기를 누르면 회원가입 완료 -> DB에도 추가된다.

삭제하기를 누르면

목록에서 없어지고 DB에서도 없어짐.

회원 정보 수정도 마찬가지...



5. 예제에서 사용된 동적 SQL문 정리



1) select * from t_member

   select 8 from t_member
       where id = 'shin'

       select 8 from t_member
       where id = 'shin'
       and pwd = '0311'

2) 주로 SQL 문의 조건절에서 사용함.
       조건절 (where)에 조건을 동적으로 추가.
       JSTL과 XML 기반으로 동적 SQL문 작성.

3) 마이바티스 동적 SQL문 구성 요소
        - if
        - choose(when, otherwise)
        - trim
        - foreach


 4) <if> 태그로 동적 SQL문 만들기
        -   <where>
                <if test='조건식'>
                    추가할 구문
                </if>
            </where>

 5)<choose> 태그로 동적 SQL문 만들기
  ---------
  -<where>
    <choose>
  <when test='조건식1'>
구문1
  </when>
  <when test='조건식2'>
구문2
  </when>
  <otherwise>
구문
  </otherwise>
</choose>
   </where>



6)<foreach> 태그로 회원 정보 조회하기
  ----------
  -<foreach item="item" collection="list" index="index" open="(" close=")" separator=",">
#{item}
   </foreach>

   -collection
    :전달받은 인자 값을 의미
 배열과 List 계열 인스턴스를 전달할 수 있음
 -List 인스턴스 전달 시에는 list로 표시함.
 -배열 전달 시에는 array로 표시함

   -index
    :접근하는 값의 위치를 나타냄
 최초 값의 위치는 0

   -item
    : 반복문이 실행될 때마다 collection 속성에 지정된 값에 접근하여 차례대로 사용함

   -open
    :해당 구문이 시작될 때의 지정한 기호를 추가함

   -close
    : 해당 구문이 끝날 때의 지정한 기호를 추가함

   -separator
    : 한 번 이상 반복될 때마다 반복되는 사이에 지정한 기호를 추가함

반응형
profile

my code archive

@얼레벌레 개발자👩‍💻

포스팅이 좋았다면 "좋아요❤️" 또는 "구독👍🏻" 해주세요!

반응형
