Web Application model1, model2



1. Model1 (모델1) 방식

-모든 클라이언트의 요청과 비즈니스 로직 처리를 JSP에서 담당하는 구조

-기능 구현이 쉽고 편리, but 유지 보수가 어려워서 큰 프로젝트에서는 한계가 있다.



2. Model2 (모델2) 방식

-각 기능을 분리해서 구현



->클라이언트의 요청 처리 및 흐름 제어 담당 (Controller) => 서블릿

->응답 처리 (화면 기능) (View) => JSP

->비즈니스 로직 처리 (Model) => DAO



-각각의 기능을 모듈화하여 개발 => 재사용이 용이하다.

-유지 보수가 쉽다.

-publisher와 개발자 작업 분업화



MVC 디자인 패턴
-Model - View - Controller

-Controller

서블릿이 컨트롤러 역할, 클라이언트의 요청 분석,

Model에서 처리한 결과를 보여주기 위해 JSP 선택.



-Model

데이터베이스 연동과 같은 비즈니스 로직 수행,

DAO, DTO(VO) 클래스



-View

JSP가 화면 기능을 담당,Model에서 처리한 결과를 화면에 표시



=>일반 PC 프로그램 개발에 사용되는 패턴을 웹 애플리케이션에 도입



URL 패턴 적용 없이 MVC 패턴으로 회원 정보 조회하기

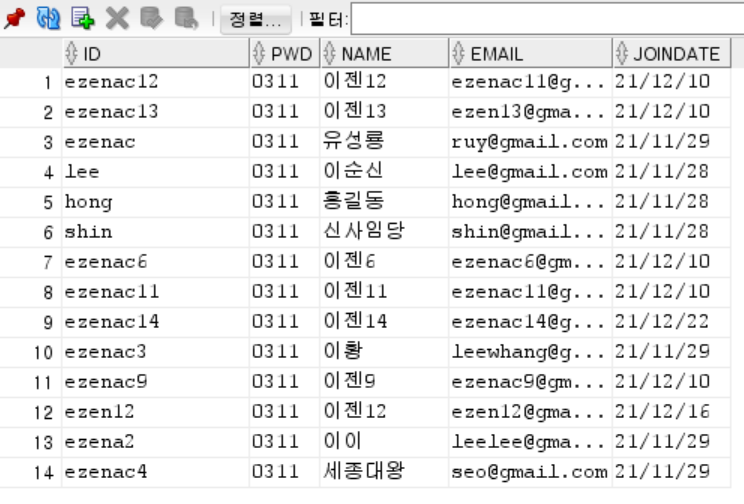

지난번에 만들었던 t_member 테이블을 사용했다.

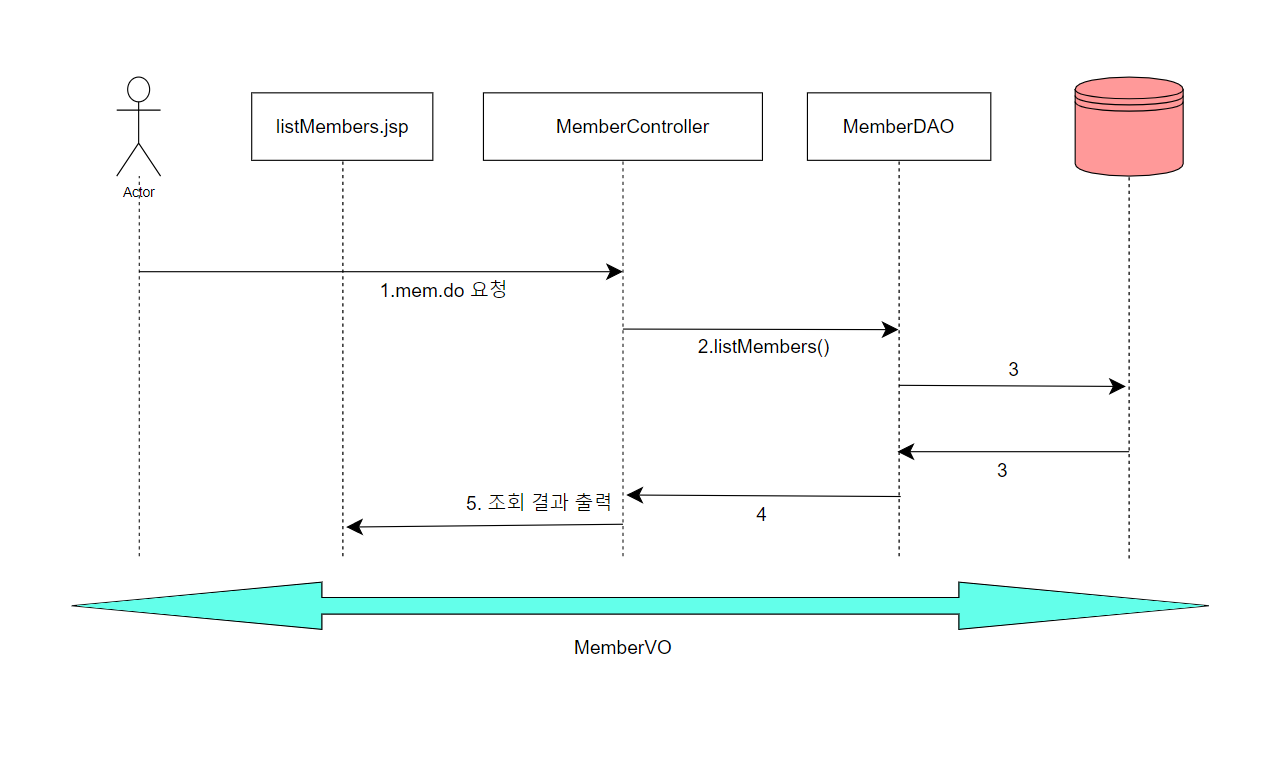

전체적인 흐름을 그림으로 표현하면 이러하다.

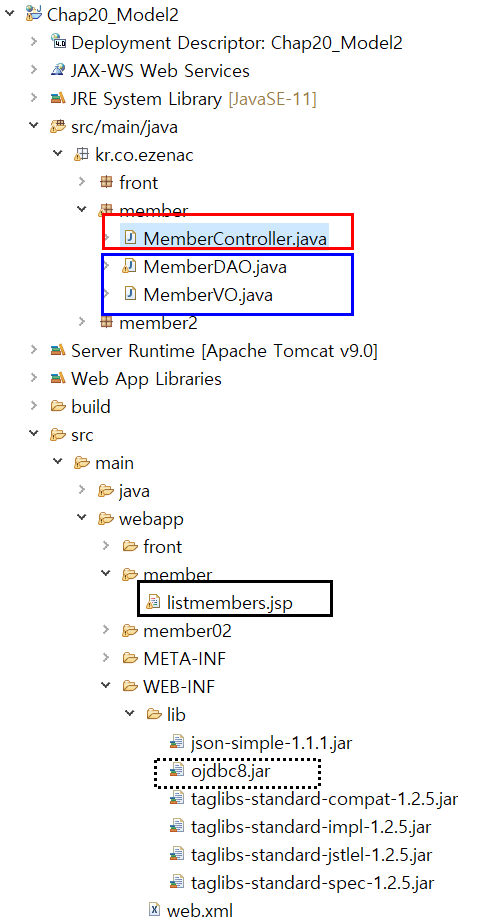

워크 스페이스 구조, 색깔별로 각각 MVC 역할 수행



MemberVO

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
import java.sql.Date;

public class MemberVO {

    private String id;
    private String pwd;
    private String name;
    private String email;
    private Date joinDate;

    public MemberVO(String id, String pwd, String name, String email, Date joinDate) {
        super();
        this.id = id;
        this.pwd = pwd;
        this.name = name;
        this.email = email;
        this.joinDate = joinDate;
    }

    public String getId() {
        return id;
    }

    public void setId(String id) {
        this.id = id;
    }

    public String getPwd() {
        return pwd;
    }

    public void setPwd(String pwd) {
        this.pwd = pwd;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public String getEmail() {
        return email;
    }

    public void setEmail(String email) {
        this.email = email;
    }

    public Date getJoinDate() {
        return joinDate;
    }

    public void setJoinDate(Date joinDate) {
        this.joinDate = joinDate;
    }





}
cs

MemberDAO

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
import java.sql.Connection;
import java.sql.Date;
import java.sql.PreparedStatement;
import java.sql.ResultSet;
import java.util.ArrayList;
import java.util.List;

import javax.naming.Context;
import javax.naming.InitialContext;
import javax.sql.DataSource;

public class MemberDAO {

    Connection conn;
    PreparedStatement pstmt;
    ResultSet rs;
    DataSource ds;

    public MemberDAO() {

        try {

        Context ctx = new InitialContext();
        Context envContext = (Context)ctx.lookup("java:comp/env");
        DataSource source = (DataSource)ctx.lookup("jdbc/oracle");

        }catch (Exception e) {
            e.printStackTrace();
        }
    }

    public List<MemberVO> listMembers(){

        List<MemberVO> membersList = new ArrayList<>();

        try {

            conn = ds.getConnection();
            String query = "SELECT * FROM t_member order by joinDate desc";
            pstmt = conn.prepareStatement(query);
            rs = pstmt.executeQuery();

            while(rs.next()) {
                String id = rs.getString("id");
                String pwd = rs.getString("pwd");
                String name = rs.getString("name");
                String email = rs.getString("email");
                Date joinDate = rs.getDate("joinDate");
                MemberVO memberVO = new MemberVO(id, pwd, name, email, joinDate);
                membersList.add(memberVO);
            }
            rs.close();
            pstmt.close();
            conn.close();

        }catch (Exception e) {
            System.out.println("회원 조회 중 오류");
            e.printStackTrace();
        }

        return membersList;
    }

}
cs

MemberController

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
import java.io.IOException;
import java.util.List;

import javax.servlet.RequestDispatcher;
import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

/**
 * Servlet implementation class MemberController
 */
@WebServlet("/mem.do")
public class MemberController extends HttpServlet {
    private static final long serialVersionUID = 1L;
    MemberDAO memberDAO;


    public void init(ServletConfig config) throws ServletException{
        memberDAO = new MemberDAO();

    }

    /**
     * @see HttpServlet#doGet(HttpServletRequest request, HttpServletResponse response)
     */
    protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {

        doHandler(request, response);
    }

    /**
     * @see HttpServlet#doPost(HttpServletRequest request, HttpServletResponse response)
     */
    protected void doPost(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {

        doHandler(request, response);
    }


    private void doHandler(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {

        request.setCharacterEncoding("utf-8");
        response.setContentType("text/html;charset=utf-8");
        List<MemberVO> membersList = memberDAO.listMembers();            //요청에 대한 회원 정보를 조회함.

        request.setAttribute("membersList", membersList);        //조회한 회원 정보를 request에 바인딩함.

        //컨트롤러에서 해당 결과를 표시할 JSP로 포워딩함.
        RequestDispatcher dispatcher = request.getRequestDispatcher("/member/listmembers.jsp");
        dispatcher.forward(request, response);

    }


}
cs

listmembers.jsp

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<%@ taglib prefix="fmt" uri="http://java.sun.com/jsp/jstl/fmt" %>
<%
    request.setCharacterEncoding("utf-8");
%>
<!DOCTYPE html>
<html>
<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>Insert title here</title>
    <style type="text/css">
        .cls1{
            font-size: 40px;
            text-align: center;
        }

        .cs2{
            font size: 20px;
            text-align: center;
        }
    </style>
</head>
<body>
    <p class="cls1">회원 정보</p>
    <table align="center" border="1">
        <tr align="center" bgcolor="lightgreen">
            <td width="%"><b>아이디</b></td>
            <td width="%"><b>비밀번호</b></td>
            <td width="%"><b>이름</b></td>
            <td width="%"><b>이메일</b></td>
            <td width="%"><b>가입일</b></td>
        </tr>
        <c:choose>
            <c:when test="${empty membersList}">
                <td colspan="5" align="center">
                    <b>등록된 회원이 없습니다.</b>
                </td>
            </c:when>
            <c:when test="${not empty membersList }">
                <c:forEach var="mem" items="${membersList }">
                    <tr align="center">
                        <td>${mem.id }</td>
                        <td>${mem.pwd }</td>
                        <td>${mem.name }</td>
                        <td>${mem.email }</td>
                        <td>${mem.joinDate }</td>
                    </tr>
                </c:forEach>
            </c:when>
        </c:choose>
    </table>

    <a href="#"></a>
</body>
</html>
cs

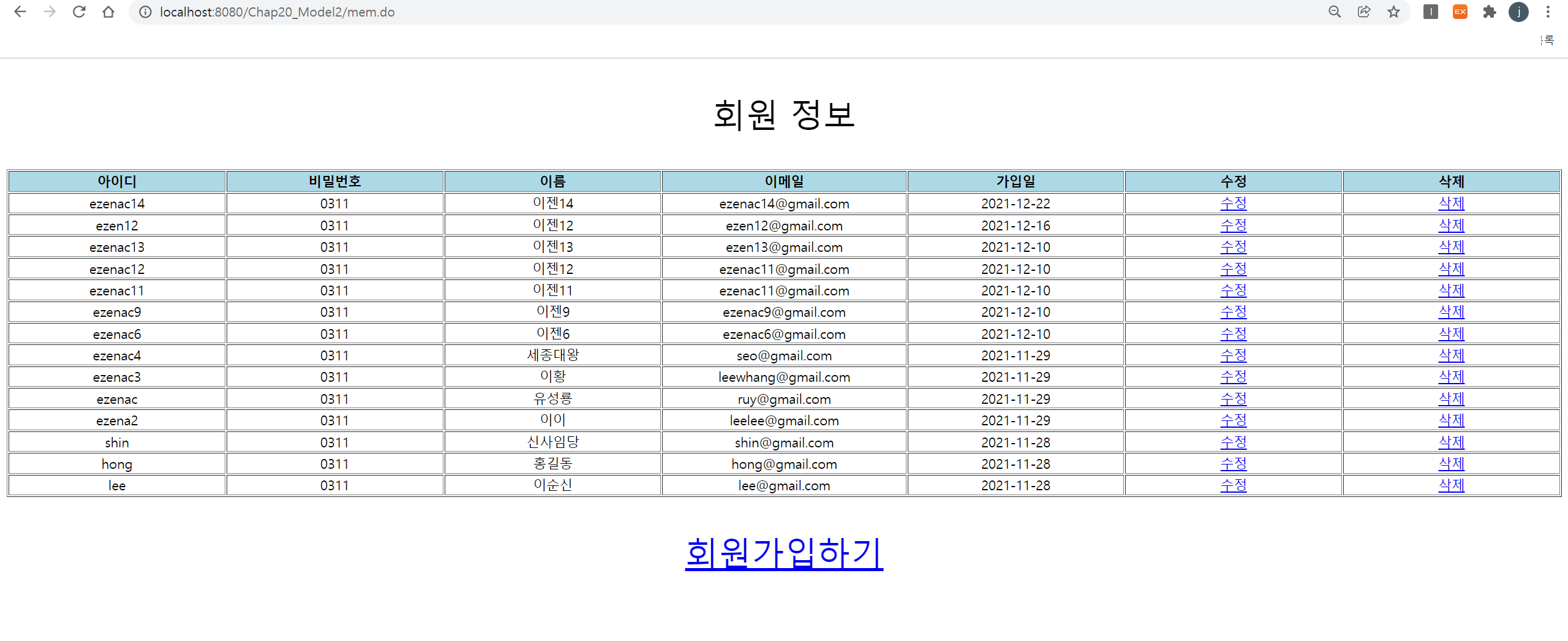

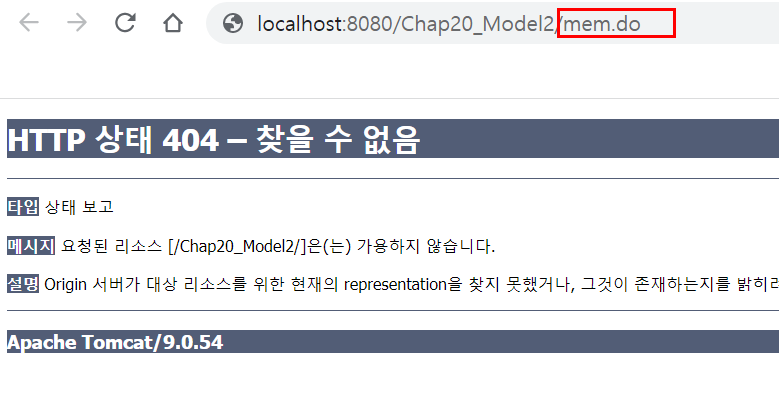

MemberController 에 매핑해둔 mem.do 입력

URL - Pattern

1. 디렉토리 패턴

-디렉토리 형태로 서버의 해당 컴포넌트(서블릿)를 찾아서 실행하는 구조

-예) http://localhost:8080/프로젝트명/directory ==> 해당 Servlet



2. 확장자 패턴

-확장자 형태로 서버의 해당 컴포넌트(서블릿)를 찾아서 실행하는 구조
-예)http://localhost:8080/프로젝트명/list.do
     http://localhost:8080/프로젝트명/update.do ==> do Servlet
     http://localhost:8080/프로젝트명/detail.do

 -http://localhost/프로젝트명/*.do 로 끝나는 요청을 동일한 doServlet으로 찾아가게 매핑함.



3. FrontController 패턴

1)FrontController 패턴 적용 전
 -클라이언트의 다양한 요청이 개별적인 서블릿 존재 => 파일도 많아지고 관리 부담
 - => 모든 요청을 처리하는 하나의 서블릿을 만들고, 이에 맞게 분기 처리 하면됨.

2)FrontController 패턴 적용 후
-클라이언트의 다양한 요청을 한 곳에서 집중시켜, 개발 및 유지보수 효율성 증대



7. Command 패턴

1) 클라이언트로부터 받은 요청들에 대해서, 서블릿이 직접하지 않고
       해당 클래스가 처리하도록 함.
2) FrontController 역할을 하는 서블릿이 직접 처리하지 않고,
   해당 업무 담당 서블릿으로 분산 시켜서 처리하도록 함.

 => FrontController 패턴  + Command 패턴



URL 패턴 적용하여 MVC 패턴으로 회원 정보 조회하기

위의 예제에

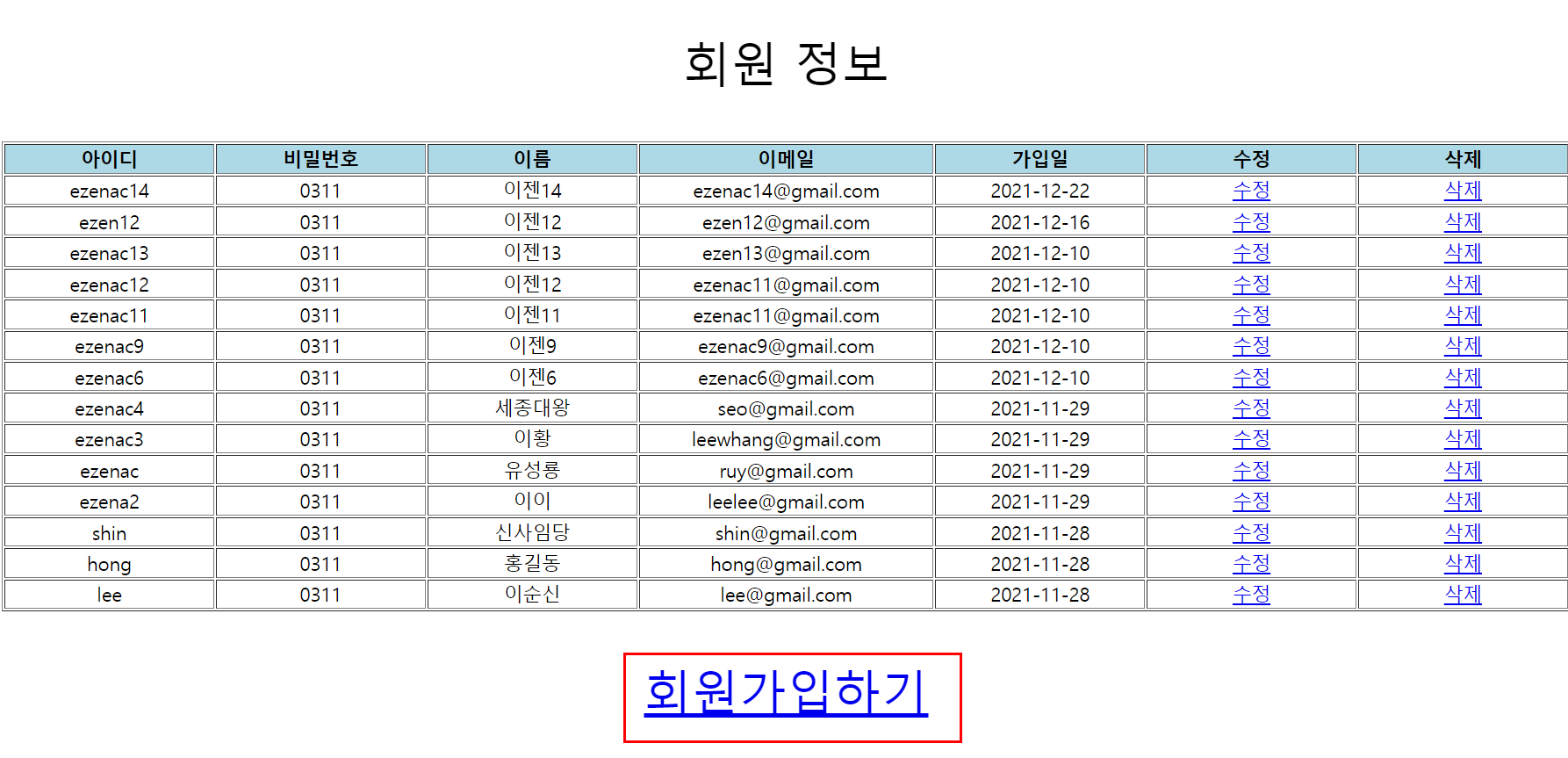

회원 가입 (회원 추가), 회원 정보 수정 & 삭제 기능 추가

}else if(action.equals("/addMember.do")) {

이런 식으로 action 값을 조건문으로 설정해서 각각 어떤 페이지로 forward할지 설정한다.

@WebServlet(name = "MemberController2", urlPatterns = { "/member/*" })

url 패턴은 /member/* 로 매핑하여 예를 들면

else if(action.equals("/memberForm.do")){
            forwardPage = "/member02/memberForm.jsp";

위의 경우

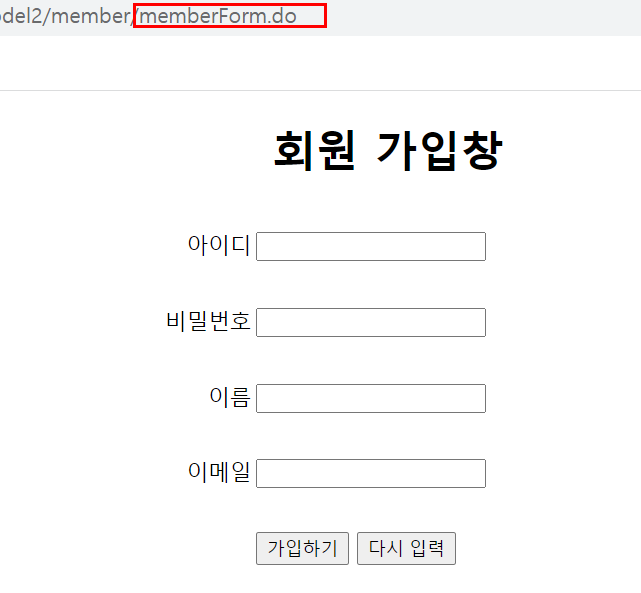

localhost:8080/ contextPath 값 /member/memberForm.do 일 경우 memberForm.jsp 페이지로 이동



MemberController.java

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
import java.io.IOException;

import java.util.List;

import javax.servlet.RequestDispatcher;
import javax.servlet.ServletConfig;
import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

/**
 * Servlet implementation class MemberController
 */
@WebServlet(name = "MemberController2", urlPatterns = { "/member/*" })
public class MemberController extends HttpServlet {
    private static final long serialVersionUID = 1L;
    MemberDAO memberDAO;

    public void init(ServletConfig config) throws ServletException{
        memberDAO = new MemberDAO();

    }

    /**
     * @see HttpServlet#doGet(HttpServletRequest request, HttpServletResponse response)
     */
    protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {

        doHandle(request, response);
    }

    /**
     * @see HttpServlet#doPost(HttpServletRequest request, HttpServletResponse response)
     */
    protected void doPost(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {

        doHandle(request, response);
    }


    private void doHandle(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {

        String forwardPage = null;
        request.setCharacterEncoding("utf-8");
        response.setContentType("text/html;charset=utf-8");

        String action = request.getPathInfo();        //URL에서 요청명을 가져옴
        System.out.println("getPathInfo()" + action);

        //최초 요청이거나 action값이 /listmembers.do이면 회원 목록을 출력함
        if(action == null || action.equals("/listmembers.do")) {
            List<MemberVO> membersList = memberDAO.listMembers();
            request.setAttribute("membersList", membersList);
            forwardPage = "/member/listmembers.jsp";        //member02폴더의 listmembers.jsp로 포워딩

        }else if(action.equals("/addMember.do")) {
            String id = request.getParameter("id");
            String pwd = request.getParameter("pwd");
            String name = request.getParameter("name");
            String email = request.getParameter("email");

            MemberVO memberVO = new MemberVO(id, pwd, name, email);
            memberDAO.addMember(memberVO);
            forwardPage = "/member/listmembers.do";

        }else if(action.equals("/memberForm.do")){
            forwardPage = "/member02/memberForm.jsp";

        }else if(action.equals("/modMemberForm.do")) {

            String id = request.getParameter("id");
            MemberVO memInfo = memberDAO.findMember(id);
            request.setAttribute("memInfo", memInfo);

            forwardPage = "/member02/modMemberForm.jsp";

        }else if(action.equals("/modMember.do")) {

            String id = request.getParameter("id");
            String pwd = request.getParameter("pwd");
            String name = request.getParameter("name");
            String email = request.getParameter("email");

            MemberVO memberVO = new MemberVO(id, pwd, name, email);
            memberDAO.modMember(memberVO);
            request.setAttribute("msg""modified");

            forwardPage = "/member/listmembers.do";

        }else if(action.equals("/delMember.do")) {

            String id = request.getParameter("id");
            memberDAO.delMember(id);
            request.setAttribute("msg""deleted");
            forwardPage = "/member/delMembers.do";

        }else {
            List<MemberVO> membersList = memberDAO.listMembers();
            request.setAttribute("membersList", membersList);
            forwardPage = "/member02/listmembers.jsp";
        }

        //forwardPage에 지정한 요청명으로 다시 서블릿에 요청함.
        RequestDispatcher dispatcher = request.getRequestDispatcher(forwardPage);
        dispatcher.forward(request, response);
    }


}
cs

MemberVO

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
import java.sql.Date;

public class MemberVO {

    private String id;
    private String pwd;
    private String name;
    private String email;
    private Date joinDate;

    public MemberVO(String id, String pwd, String name, String email) {

        this.id = id;
        this.pwd = pwd;
        this.name = name;
        this.email = email;
    }

    public MemberVO(String id, String pwd, String name, String email, Date joinDate) {
        super();
        this.id = id;
        this.pwd = pwd;
        this.name = name;
        this.email = email;
        this.joinDate = joinDate;
    }

    public String getId() {
        return id;
    }

    public void setId(String id) {
        this.id = id;
    }

    public String getPwd() {
        return pwd;
    }

    public void setPwd(String pwd) {
        this.pwd = pwd;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public String getEmail() {
        return email;
    }

    public void setEmail(String email) {
        this.email = email;
    }

    public Date getJoinDate() {
        return joinDate;
    }

    public void setJoinDate(Date joinDate) {
        this.joinDate = joinDate;
    }





}
cs

MemberDAO

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
import java.sql.Connection;
import java.sql.Date;
import java.sql.PreparedStatement;
import java.sql.ResultSet;
import java.util.ArrayList;
import java.util.List;

import javax.naming.Context;
import javax.naming.InitialContext;
import javax.sql.DataSource;

public class MemberDAO {

    Connection conn;
    PreparedStatement pstmt;
    DataSource ds;

    public MemberDAO() {

        try {

            Context ctx = new InitialContext();
            Context envContext = (Context)ctx.lookup("java:/comp/env");  //JNDI에 접근하기 위해 기본경로를 지정함.
            //톰캣 context.xml에 설정한 name 값인 jdbc/oracle을 이용해 톰캣이 미리 연결한 DataSource를 받아옴.
            ds = (DataSource)envContext.lookup("jdbc/oracle");

            }catch (Exception e) {
                e.printStackTrace();
        }
    }

    public List<MemberVO> listMembers(){

        List<MemberVO> membersList = new ArrayList<>();

        try {

            conn = ds.getConnection();
            String query = "SELECT * FROM t_member order by joinDate desc";
            pstmt = conn.prepareStatement(query);
            ResultSet rs = pstmt.executeQuery();

            while(rs.next()) {
                String id = rs.getString("id");
                String pwd = rs.getString("pwd");
                String name = rs.getString("name");
                String email = rs.getString("email");
                Date joinDate = rs.getDate("joinDate");
                MemberVO memberVO = new MemberVO(id, pwd, name, email, joinDate);
                membersList.add(memberVO);
            }
            rs.close();
            pstmt.close();
            conn.close();

        }catch (Exception e) {
            System.out.println("회원 조회 중 오류");
            e.printStackTrace();
        }

        return membersList;
    }
cs

MemberDAO

--회원 추가, 회원 정보 수정&삭제 기능

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
public void addMember(MemberVO m) {

        try {

            conn = ds.getConnection();

            String id = m.getId();
            String pwd = m.getPwd();
            String name = m.getName();
            String email = m.getEmail();

            String query = "INSERT INTO t_member(id, pwd, name, email) VALUES(?, ?, ? , ?)";
            pstmt = conn.prepareStatement(query);
            pstmt.setString(1, id);
            pstmt.setString(2, pwd);
            pstmt.setString(3, name);
            pstmt.setString(4, email);
            pstmt.executeUpdate();

            pstmt.close();
            conn.close();

        }catch (Exception e) {
            System.out.println("회원가입 중 예외 발생");
            e.printStackTrace();
        }
    }

    public MemberVO findMember(String _id) {
        MemberVO memInfo = null;

        try {

            conn = ds.getConnection();
            String query = "SELECT * FROM t_member WHERE id = ?";
            pstmt = conn.prepareStatement(query);
            pstmt.setString(1, _id);
            System.out.println(query);

            ResultSet rs = pstmt.executeQuery();
            rs.next();
            String id = rs.getString("id");
            String pwd = rs.getString("pwd");
            String name = rs.getString("name");
            String email = rs.getString("email");
            Date joinDate = rs.getDate("joinDate");

            memInfo = new MemberVO(id, pwd, name, email, joinDate);

            pstmt.close();
            conn.close();

        }catch (Exception e) {
            System.out.println("회원 정보 찾기 중 예외 발생");
            e.printStackTrace();
        }

        return memInfo;
    }

    public void modMember(MemberVO memberVO) {

        String id = memberVO.getId();
        String pwd = memberVO.getPwd();
        String name = memberVO.getName();
        String email = memberVO.getEmail();

        try {

            conn = ds.getConnection();
            String query = "UPDATE t_member SET PWD = ?, NAME = ?, EMAIL = ? WHERE ID = ?";
            System.out.println(query);

            pstmt = conn.prepareStatement(query);
            pstmt.setString(1, pwd);
            pstmt.setString(2, name);
            pstmt.setString(3, email);
            pstmt.setString(4, id);
            pstmt.executeUpdate();

            pstmt.close();
            conn.close();

        }catch (Exception e) {
            System.out.println("회원 정보 수정 중 예외 발생");
            e.printStackTrace();
        }
    }

    public void delMember(String id) {

        try {

            conn = ds.getConnection();
            String query = "delete from t_member WHERE id = ?";
            System.out.println(query);
            pstmt = conn.prepareStatement(query);
            pstmt.setString(1, id);
            pstmt.executeUpdate();

        }catch (Exception e) {
            System.out.println("회원 삭제 중 예외 발생");
            e.printStackTrace();
        }
    }

}
cs

listmembers.jsp

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<%@ taglib prefix="fmt" uri="http://java.sun.com/jsp/jstl/fmt" %>
<c:set var="contextPath" value="${pageContext.request.contextPath }"/>
<%
    request.setCharacterEncoding("utf-8");
%>
<!DOCTYPE html>
<html>
<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>Insert title here</title>
    <style type="text/css">
        .cls1{
            font-size: 40px;
            text-align: center;
        }

        .cls2{
            font-size: 40px;
            text-align: center;
        }

        .cs2{
            font size: 20px;
            text-align: center;
        }
    </style>

    <c:choose>
        <c:when test="${msg == 'modified' }">
            <script type="text/javascript">
                window.onload=function(){
                    alert("회원 정보를 수정했습니다.");
                }
            </script>
        </c:when>
    </c:choose>

    <c:choose>
        <c:when test="${msg == 'deleted' }">
            <script type="text/javascript">
                window.onload=function(){
                    alert("회원 정보를 수정했습니다.");
                }
            </script>
        </c:when>
    </c:choose>

</head>
<body>
    <p class="cls1">회원 정보</p>
    <table align="center" border="1">
        <tr align="center" bgcolor="lightblue">
            <td width="7%"><b>아이디</b></td>
            <td width="7%"><b>비밀번호</b></td>
            <td width="7%"><b>이름</b></td>
            <td width="7%"><b>이메일</b></td>
            <td width="7%"><b>가입일</b></td>
            <td width="7%"><b>수정</b></td>
            <td width="7%"><b>삭제</b></td>
        </tr>
        <c:choose>
            <c:when test="${empty membersList}">
                <td colspan="5" align="center">
                    <b>등록된 회원이 없습니다.</b>
                </td>
            </c:when>
            <c:when test="${not empty membersList }">
                <c:forEach var="mem" items="${membersList }">
                    <tr align="center">
                        <td>${mem.id }</td>
                        <td>${mem.pwd }</td>
                        <td>${mem.name }</td>
                        <td>${mem.email }</td>
                        <td>${mem.joinDate }</td>
                        <td><a href="${contextPath }/member/modMemberForm.do/id=${mem.id}">수정</a></td>
                        <td><a href="${contextPath }/member/delMemberForm.do/id=${mem.id}">삭제</a></td>
                    </tr>
                </c:forEach>
            </c:when>
        </c:choose>
    </table>

    <a href="${contextPath }/member/memberForm.do"><p class="cls2">회원가입하기</p></a>
</body>
</html>
cs

memberForm.jsp

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<c:set var="contextPath" value="${pageContext.request.contextPath }"/>
<!DOCTYPE html>
<html>
<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>회원 가입창</title>
</head>
<body>
    <form action="${contextPath }/member/addMember.do" method="post">
        <h1 style="text-align: center;">회원 가입창</h1>
        <table align="center">
            <tr>
                <td width="200">
                    <p align="right">아이디</p>
                </td>
                <td width="400">
                    <input type="text" name="id">
                </td>
            </tr>
            <tr>
                <td width="200">
                    <p align="right">비밀번호</p>
                </td>
                <td width="400">
                    <input type="password" name="pwd">
                </td>
            </tr>
            <tr>
                <td width="200">
                    <p align="right">이름</p>
                </td>
                <td width="400">
                    <input type="text" name="name">
                </td>
            </tr>
            <tr>
                <td width="200">
                    <p align="right">이메일</p>
                </td>
                <td width="400">
                    <input type="text" name="email">
                </td>
            </tr>
            <tr>
                <td width="200">
                    <p align="right">&nbsp;</p>
                </td>
                <td width="400">
                    <input type="submit" value="가입하기">
                    <input type="reset" value="다시 입력">
                </td>

            </tr>
        </table>
    </form>
</body>
</html>
cs

modMemberForm.jsp

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<%@ taglib prefix="fmt" uri="http://java.sun.com/jsp/jstl/fmt" %>
<c:set var="contextPath" value="${pageContext.request.contextPath }"/>
<%
    request.setCharacterEncoding("utf-8");
%>
<!DOCTYPE html>
<html>
<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>회원정보 수정</title>
</head>
<body>
    <form action="${contextPath }/member/modMember.do?id=${memInfo.id}" method="post">
        <h1 style="text-align: center;">회원 가입창</h1>
        <table align="center">
            <tr>
                <td width="200">
                    <p align="right">아이디</p>
                </td>
                <td width="400">
                    <input type="text" name="id" value="${memInfo.id }" disabled>
                </td>
            </tr>
            <tr>
                <td width="200">
                    <p align="right">비밀번호</p>
                </td>
                <td width="400">
                    <input type="password" name="pwd" value="${memInfo.pwd }">
                </td>
            </tr>
            <tr>
                <td width="200">
                    <p align="right">이름</p>
                </td>
                <td width="400">
                    <input type="text" name="name" value="${memInfo.name }">
                </td>
            </tr>
            <tr>
                <td width="200">
                    <p align="right">이메일</p>
                </td>
                <td width="400">
                    <input type="text" name="email" value="${memInfo.email }">
                </td>
            </tr>
            <tr>
                <td width="200">
                    <p aligin="right">가입일</p>
                </td>
                <td width="400">
                    <input type="text" name="joinDate" value="${memInfo.joinDate }" disabled>
                </td>
            </tr>
            <tr>
                <td width="200">
                    <p align="right">&nbsp;</p>
                </td>
                <td width="400">
                    <input type="submit" value="가입하기">
                    <input type="reset" value="다시 입력">
                </td>

            </tr>
        </table>
    </form>
</body>
</html>
cs

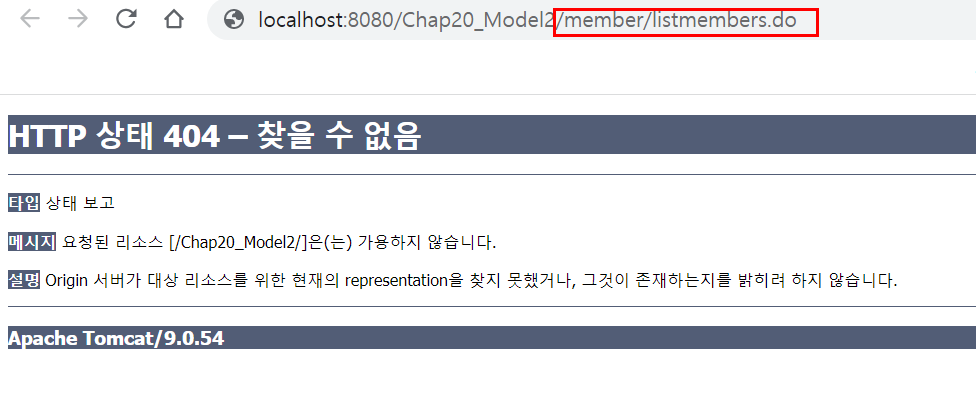

커맨드 패턴 입력하면

listmembers.jsp 로 이동 -> 가입하기 누르면

memberForm.jsp로 이동

반응형
profile

my code archive

@얼레벌레 개발자👩‍💻

포스팅이 좋았다면 "좋아요❤️" 또는 "구독👍🏻" 해주세요!

반응형
