[STS Spring] 게시판 만들기 -- 03. Mybatis 연동

• 1. pom.xml 수정 (mybatis 이외에도 이번에 수업 시간에 추가했던 의존성 함께 추가했다.)

<!-- 마이바티스 관련 라이브러리 -->
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis</artifactId>
            <version>3.5.9</version>
        </dependency>
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis-spring</artifactId>
            <version>2.0.6</version>
        </dependency>

        <!-- AspectJ -->
        <dependency>
            <groupId>org.aspectj</groupId>
            <artifactId>aspectjweaver</artifactId>
            <version>${org.aspectj-version}</version>
        </dependency>

        <dependency>
            <groupId>org.aspectj</groupId>
            <artifactId>aspectjtools</artifactId>
            <version>${org.aspectj-version}</version>
        </dependency>

        <!-- 타일즈 관련 라이브러리 -->
        <dependency>
            <groupId>org.apache.tiles</groupId>
            <artifactId>tiles-core</artifactId>
            <version>2.2.2</version>
        </dependency>
        <dependency>
            <groupId>org.apache.tiles</groupId>
            <artifactId>tiles-jsp</artifactId>
            <version>2.2.2</version>
        </dependency>
        <dependency>
            <groupId>org.apache.tiles</groupId>
            <artifactId>tiles-servlet</artifactId>
            <version>2.2.2</version>
        </dependency>

        <!-- 다중 파일 업로드 -->
        <dependency>
            <groupId>commons-fileupload</groupId>
            <artifactId>commons-fileupload</artifactId>
            <version>1.2.1</version>
        </dependency>
        <dependency>
            <groupId>commons-io</groupId>
            <artifactId>commons-io</artifactId>
            <version>1.4</version>
        </dependency>

        <!-- 썸네일 이미지 -->
        <dependency>
            <groupId>net.coobird</groupId>
            <artifactId>thumbnailator</artifactId>
            <version>0.4.16</version>
        </dependency>


        <!-- 이메일 -->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context-support</artifactId>
            <version>${org.springframework-version}</version>
        </dependency>
        <dependency>
            <groupId>javax.mail</groupId>
            <artifactId>javax.mail-api</artifactId>
            <version>1.6.2</version>
        </dependency>
        <dependency>
            <groupId>com.sun.mail</groupId>
            <artifactId>javax.mail</artifactId>
            <version>1.6.2</version>
        </dependency>

        <!-- JSON -->
        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-databind</artifactId>
            <version>2.13.1</version>
        </dependency>

• 2. data.xml 수정 -- mysql 연결 담당 datasource 추가
• sqlSessionFactory : DB 연결, SQL 실행에 관한 중요한 객체, sqlSessionFactoryBean이라는 클래스 사용
• MySQL - Mybatis 연결해주는 것 => sqlSessionFactory 라고 정리

<bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
        <property name="dataSource" ref="dataSource" />
        <property name="configLocation" value="classpath:mybatis/model/modelConfig.xml" />
        <property name="mapperLocations" value="classpath:mybatis/mappers/*.xml" />
    </bean>

    <!-- SqlSessionTemplate 이용해 sqlSession 빈을 생성함 -->
    <bean id="sqlSession" class="org.mybatis.spring.SqlSessionTemplate" destroy-method="clearCache">
        <constructor-arg index="0" ref="sqlSessionFactory"></constructor-arg>
    </bean>

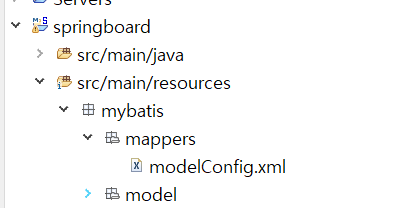

• 3. 수업시간에 했던 구조와 유사하게 패키지 생성 후 modelConfig.xml 생성

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE configuration
  PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
  "http://mybatis.org/dtd/mybatis-3-config.dtd">

<configuration>
    <typeAliases>
        <typeAlias type=""/>
    </typeAliases>
</configuration>
